API Gateway vs. Service Mesh: A Comparative Analysis

Hello! Welcome back to our final module on System Design & Production Readiness.

In our last lesson, we took a deep dive into the service mesh, exploring how tools like Istio fundamentally enhance security, traffic management, and observability for a fleet of microservices. You learned how a mesh uses a data plane of sidecar proxies and a control plane to manage service-to-service communication without cluttering your application code.

Today, we'll address a very common point of confusion and a frequent question in senior-level system design interviews. The learning outcome for this lesson is to compare the roles and trade-offs of using an API Gateway versus a service mesh. Moving beyond simple definitions, we'll dissect their core purposes, architectural differences, and how they can work together to create a robust, scalable, and secure system.

1. The Common Myth: North-South vs. East-West Traffic

You've likely heard the common shorthand: "API Gateways are for North-South traffic, and service meshes are for East-West traffic."

• North-South traffic refers to communication entering or leaving your cluster (e.g., from a mobile app to your backend).
• East-West traffic refers to communication between services running inside your cluster.

This model is a useful starting point, but relying on it exclusively is a fallacy that can lead to poor architectural decisions.

To see this common distinction in action, let's watch a short video clip.

The problem with this model is that it's not strictly true. An API Gateway can be used to manage internal traffic, and a service mesh's ingress gateway is specifically designed to handle traffic entering the mesh from the outside. The real difference is not about the direction of traffic but about the purpose of the tool.

2. The Real Difference: Purpose and Responsibility

The most critical distinction to make in an interview is that API Gateways and Service Meshes were designed to solve fundamentally different problems.

To summarize this crucial point:

• An API Gateway asks: "Is this user, from this mobile app, allowed to call the /payments API, and have they exceeded their hourly quota?" It understands concepts like users, API keys, and billing tiers.
• A Service Mesh asks: "Is this request claiming to be from the Payment-Service cryptographically proven to be so, and should it be allowed to talk to the Fraud-Detection-Service?" It understands concepts like service identity, latency percentiles, and failure rates.

3. Architectural and Capability Differences

These different purposes lead to very different architectures and capabilities. An API Gateway is a centralized component, a specific chokepoint through which traffic is routed. A Service Mesh is decentralized, injecting a proxy alongside every service instance.

Let's break down how their capabilities differ in practice.

Here is a summary table of the key differences, which is a great resource for interview preparation:

Capability	API Gateway	Service Mesh
Primary Focus	Managing client-to-service traffic (Edge)	Managing service-to-service traffic (Internal)
Deployment Model	Centralized reverse proxy or cluster	Decentralized sidecar proxy per service
Authentication	User/Client identity (OAuth2, API keys, JWT)	Service identity (mTLS certificates)
Authorization	Based on user roles, scopes, client tiers	Based on service identity (ServiceA can/cannot call ServiceB)
Load Balancing	Centralized, server-side	Decentralized, client-side (at the sidecar)
Rate Limiting	Per-client, per-API key (business-oriented)	Per-service (protects from internal overload)
Resilience	Circuit breakers at the edge	Circuit breakers, retries, timeouts for every service call, without code changes
Observability	Edge metrics, API usage analytics	Deep service-to-service metrics, distributed tracing for all internal calls
Security Model	"Castle and Moat" (strong perimeter)	"Zero-Trust" (every internal request is verified)
Primary User	API consumers, product managers	Platform engineers, SREs

Test your understanding!

A developer on your team suggests removing the API Gateway because "the service mesh can handle authentication with mTLS." How would you respond to this as a senior engineer?

Show answer

This is a great opportunity to clarify the different roles of these technologies. I would explain that this suggestion confuses two different types of authentication:

1. Service Identity (mTLS): The service mesh provides this. It proves that a request genuinely came from, say, the inventory-service and not a rogue application. This is crucial for internal, zero-trust security. However, it knows nothing about the end-user who initiated the original request.

2. User/Client Identity (OAuth2/JWT): The API Gateway handles this. It validates the credentials of the end-user or client application (e.g., a mobile app or a partner system) to determine if they are authorized to perform an action.

Therefore, you need both. The API Gateway authenticates the external user at the edge. Once the request is inside the system, the service mesh uses mTLS to authenticate the internal services as they communicate with each other to fulfill that request. Removing the gateway would eliminate the critical step of authenticating the end-user.

4. The Decision Framework: When to Use Which? (And When to Use Both)

In a mature microservices architecture, the question isn't "API Gateway or Service Mesh?" but rather "How do we best use an API Gateway and a Service Mesh together?"

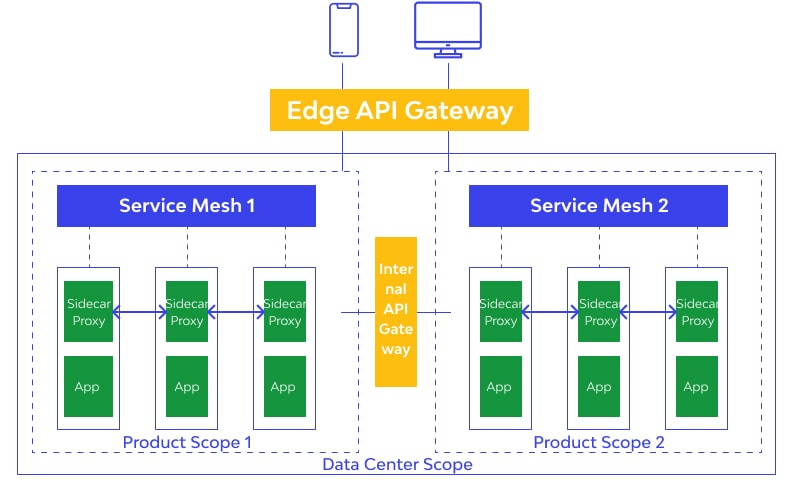

Here is a visual representation of how these components coexist in a large-scale system.

This combined architecture leverages the strengths of both:

1. The API Gateway acts as the front door, managing the API as a product. It handles user authentication, rate limiting, and presents a stable, unified interface to the outside world.
2. The Service Mesh acts as the smart network plumbing inside, ensuring that all internal communication is secure, resilient, and observable, without requiring developers to write boilerplate infrastructure code.

Conclusion

Let's recap the essential takeaways for your next system design interview. When comparing an API Gateway and a service mesh, avoid the simplistic "North-South vs. East-West" trap. Instead, focus on their fundamental purpose:

• API Gateways are for managing APIs as products. They are business-aware, client-facing, and provide a centralized point of control for external access, security, and API lifecycle management.
• Service Meshes are for managing service connectivity. They are business-agnostic, internal-facing, and provide a decentralized infrastructure layer for reliability, security (zero-trust), and deep observability.

The most robust architectures often use both: an API Gateway at the edge to manage external clients and a Service Mesh in the data center to manage the complex web of internal service communications.

---

Preview of the Next Lesson:

In this lesson and the previous one, we've discussed how gateways and meshes are instrumental in providing observability (metrics, logs, and traces). In our next lesson, we will put this into practice by learning how to "Analyze the root cause of a simulated production incident by correlating logs, metrics, and traces." You'll learn how to use these signals to methodically diagnose and resolve issues in a complex distributed system.
