BJT Hybrid-Pi Model for Amplifiers

Hello Alex,

Welcome back to our study of radioelectronics. In the last lesson, we mastered BJT biasing, focusing on how to establish a stable DC operating point (the Q-point). That DC setup is the foundation upon which any amplifier is built. Now, we shift our focus from the static DC world to the dynamic AC world.

This lesson introduces the BJT Small-Signal Model, specifically the Hybrid-pi model. We need this model because a transistor's behavior is inherently non-linear. The small-signal model is a linearized equivalent circuit that accurately represents the transistor's response to small AC signals around the Q-point we worked so hard to establish. Mastering this model is the key to analyzing and designing amplifiers, allowing us to calculate crucial performance metrics like gain and impedance.

Approximate time to complete: 60 minutes.

1. From DC Bias to AC Analysis: The Need for a Model

In our previous lesson, we treated the BJT as a DC device. We were concerned with setting $I_{C}$ and $V_{CE}$ to place the transistor in the active region. Now, we want to see how it amplifies a small AC input signal (like audio or a radio frequency signal) superimposed on this DC bias.

The relationship between the base-emitter voltage ( $V_{BE}$ ) and the collector current ( $I_{C}$ ) is exponential. Using this non-linear relationship for AC analysis would be incredibly complex. The solution is linearization. If the AC signal is "small" enough, we can approximate the exponential curve at the Q-point with a straight line. The hybrid-pi model is the circuit representation of this linear approximation.

This model is the modern standard for BJT analysis. It's more intuitive than older models (like the h-parameter model) because its components directly relate to the physical processes inside the transistor. Critically, it includes elements that allow for accurate high-frequency analysis, which is essential in radioelectronics.

Let's get an overview of why this model is so important and what makes it suitable for both low and high-frequency work.

Watch: Introduction to Hybrid-pi Model and its Advantages (00:00 - 02:36). Pay attention to why this model surpasses others, especially its inclusion of parameters for high-frequency analysis. As someone with a background in Radiophysics, you'll appreciate that this model, also known as the Giacoletto model, was specifically developed to better account for these effects.

2. Deconstructing the Full Hybrid-pi Model

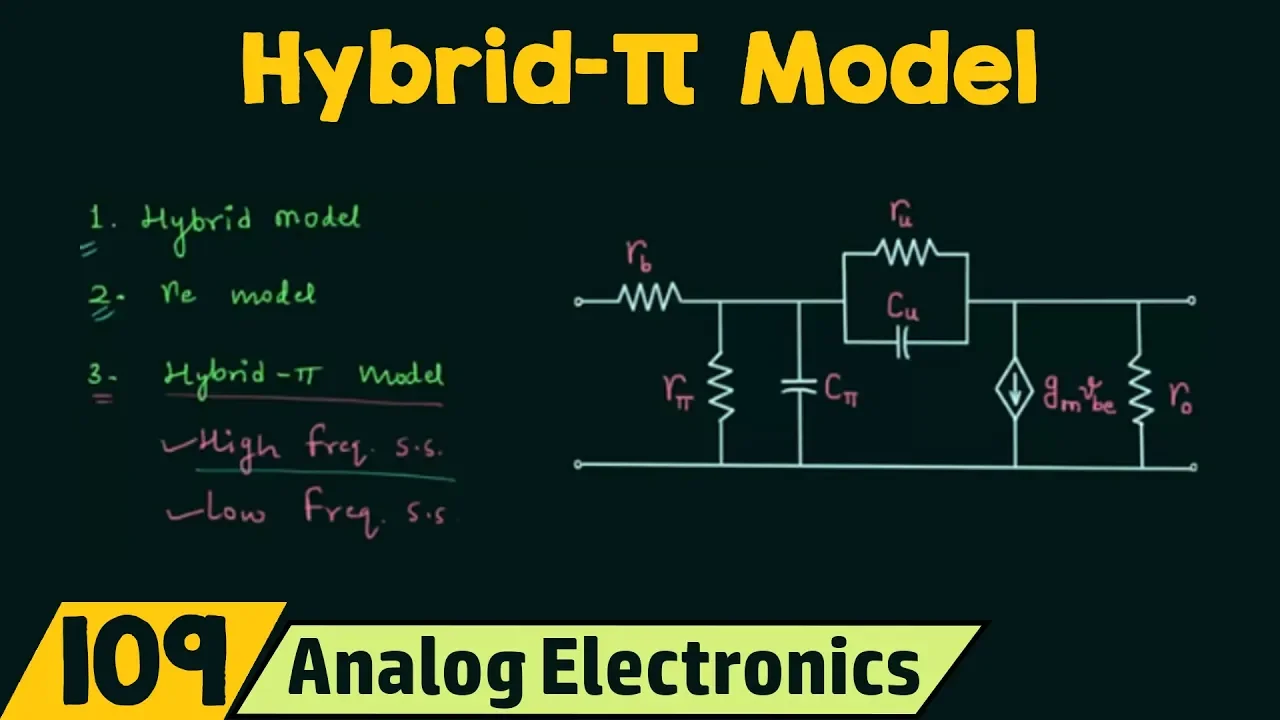

The complete hybrid-pi model provides a comprehensive picture of the transistor's behavior. Let's break down its components. The video below gives a clear explanation of each part, which we will then summarize and connect to the physics of the device.

Watch: Components of the Hybrid-pi Model (02:17 - 05:27). This segment introduces the key resistances and capacitances that form the model.

Here's a breakdown of those components, which are placed between the BJT's external terminals: base (B), collector (C), and emitter (E).

The Core Components

Input Resistance, $r_{π}$ : This is the dynamic resistance between the base and emitter for a small AC signal. It represents the forward-biased base-emitter junction.
Transconductance, $g_{m}$ : This is the heart of the amplifier model. It's a Voltage-Controlled Current Source (VCCS) that generates the output collector current ( $i_{c}$ ) based on the input base-emitter voltage ( $v_{b e}$ ). Its value is $g_{m} v_{b e}$ . This component is what provides the amplification.
Output Resistance, $r_{o}$ : This resistance models the Early effect. In an ideal transistor, the collector current wouldn't change with $V_{CE}$ in the active region. In reality, it does slightly. $r_{o}$ accounts for this, appearing between the collector and emitter.

High-Frequency and Parasitic Components

Base-Spreading Resistance, $r_{b}$ (or $r_{b b^{'}}$ ): A small parasitic resistance representing the physical resistance of the semiconductor material in the base region.
Feedback Resistance, $r_{μ}$ : A very large resistance that models the feedback effect between the collector and base.
Base-Emitter Capacitance, $C_{π}$ : This consists of two parts: the junction capacitance of the forward-biased BE junction and, more importantly, the diffusion capacitance. The diffusion capacitance represents the time delay associated with charge carriers diffusing across the base.
Base-Collector Capacitance, $C_{μ}$ : This is the junction capacitance of the reverse-biased BC junction. While small, it creates a feedback path from the output to the input, which becomes critical at high frequencies (the Miller effect).

For your background, these capacitances, $C_{π}$ and $C_{μ}$ , are what ultimately limit the high-frequency performance of a BJT amplifier.

3. Calculating the Model Parameters from the Q-Point

The power of the small-signal model is that all its key parameters are determined by the DC Q-point. This directly links our previous lesson on biasing to the AC analysis we're doing now.

Transconductance ( $g_{m}$ )

Transconductance is the slope of the $I_{C}$ vs. $V_{BE}$ curve at the Q-point.
$g_{m} = \frac{\partial I _{C}}{\partial V _{BE}}_{Q-point}$
For a BJT, this simplifies to a wonderfully straightforward formula:
$g_{m} = \frac{I _{C, Q}}{V _{T}}$
where $I_{C, Q}$ is the DC collector current at the Q-point and $V_{T}$ is the thermal voltage (~26 mV at room temperature). This shows that the "gain potential" of the transistor is directly proportional to its bias current.

Input Resistance ( $r_{π}$ )

The input resistance $r_{π}$ can be shown to relate to the transconductance through the current gain, $β$ .
$r_{π} = \frac{β}{g _{m}}$
This gives us a crucial identity that we will use constantly:
$β = g_{m} r_{π}$

Output Resistance ( $r_{o}$ )

The output resistance is determined by the Early Voltage ( $V_{A}$ ), a transistor parameter, and the Q-point collector current.
$r_{o} = \frac{V _{A}}{I _{C, Q}}$

The following video segment elegantly derives these relationships.

Watch: Transconductance (G_m) and Parameter Relationships (06:29 - 09:32). This section is critical. It derives $g_{m}$ and connects it to $r_{π}$ and $β$ , forming the mathematical backbone of the model.

4. The Simplified Low-Frequency Model

For many applications, especially at audio and intermediate frequencies, the full hybrid-pi model is more complex than necessary. We can simplify it significantly.

At low to mid-frequencies:

The reactances of $C_{π}$ and $C_{μ}$ ( $X_{C} = \frac{1}{2 π f C}$ ) are extremely high, so we can treat them as open circuits.
The base spreading resistance $r_{b}$ is usually much smaller than $r_{π}$ and can be ignored (short circuit).
The feedback resistance $r_{μ}$ is enormous and can be ignored (open circuit).

This leaves us with a much more manageable circuit, as shown below.

In many cases, the output resistance $r_{o}$ is also much larger than the external collector resistor ( $R_{C}$ ) and can be omitted to simplify calculations further.

Let's watch the simplification process in action.

Watch: Simplification of Hybrid-pi Model for Low Frequencies (09:32 - 11:28). This clip visually demonstrates how the full model is reduced to the practical, simplified version we will use for analysis.

How to Use the Model: A Conceptual Walkthrough

To analyze an amplifier, you would follow these three steps:

DC Analysis: Analyze the circuit with all AC sources off. Use the techniques from the previous lesson (e.g., Voltage Divider Bias) to find the Q-point values, primarily the DC collector current $I_{C, Q}$ .
Parameter Calculation: Use $I_{C, Q}$ and the transistor's given parameters ( $β$ , $V_{A}$ ) to calculate the small-signal parameters: $g_{m} = I_{C, Q} / V_{T}$ , $r_{π} = β / g_{m}$ , and $r_{o} = V_{A} / I_{C, Q}$ .
AC Analysis:
- Replace the BJT in the circuit diagram with the simplified hybrid-pi model.
- Set all DC voltage sources to zero (replace with a short circuit to ground) and all DC current sources to zero (replace with an open circuit).
- Assume all external coupling and bypass capacitors are short circuits for the AC signal.
- Analyze the resulting linear circuit using standard techniques (Ohm's law, KVL, KCL) to find the voltage gain, input impedance, and output impedance.

Conclusion

In this lesson, we have developed the essential tool for AC amplifier analysis: the hybrid-pi small-signal model. You have learned how a non-linear device like a BJT can be represented by a linear circuit for small signals, and how the parameters of this model are directly determined by the DC bias conditions.

Key Takeaways:

The hybrid-pi model is a linear equivalent circuit that models a BJT's behavior for small AC signals around its DC Q-point.
The model's core is the transconductance ( $g_{m}$ ), a voltage-controlled current source that defines the transistor's gain. Its value is $g_{m} = I_{C} / V_{T}$ .
The model's input resistance ( $r_{π}$ ) and output resistance ( $r_{o}$ ) are also determined by the DC bias current and transistor parameters ( $β$ , $V_{A}$ ).
The key relationship $β = g_{m} r_{π}$ links the model's parameters together.
For low and mid-frequency analysis, the model is simplified by removing internal capacitances and parasitic resistances, making circuit analysis much more straightforward.

This lesson marks the culmination of our BJT amplifier theory. You now have the tools for both DC biasing and AC small-signal analysis.

In our next lesson, we will begin our exploration of the other major family of transistors: MOSFETs. We will start with the MOSFET Structure and Modes of Operation, and you will see that many of the concepts we've just learned, such as transconductance and small-signal modeling, have direct parallels in the world of MOSFETs.
