Choreographed Saga Implementation

Hello! Welcome back to our module on Distributed Transactions.

In our last lesson, we designed a complete saga flow on paper, carefully mapping out the forward transactions for the "happy path" and the compensating transactions for handling failures. We also identified the critical pivot transaction that marks the point of no return.

Today, we transition from design to practice. Your learning outcome is to implement a choreographed saga using events for the 'happy path' and compensating transactions. We will translate the abstract flow we designed into concrete Spring Boot services that communicate asynchronously using a message broker. This is a very common interview topic, as it tests your ability to write resilient, loosely coupled systems.

1. From Design to Choreography

In the choreography pattern, there is no central controller. Instead, each service in the saga performs its local transaction and then publishes an event. Other services subscribe to these events and react accordingly. The entire business process unfolds as a chain reaction of events.

The "happy path" is driven by success events (e.g., OrderCreated, PaymentProcessed), while the failure path is driven by failure events (e.g., InventoryFailed), which trigger compensating actions in services that have already completed their part of the saga.

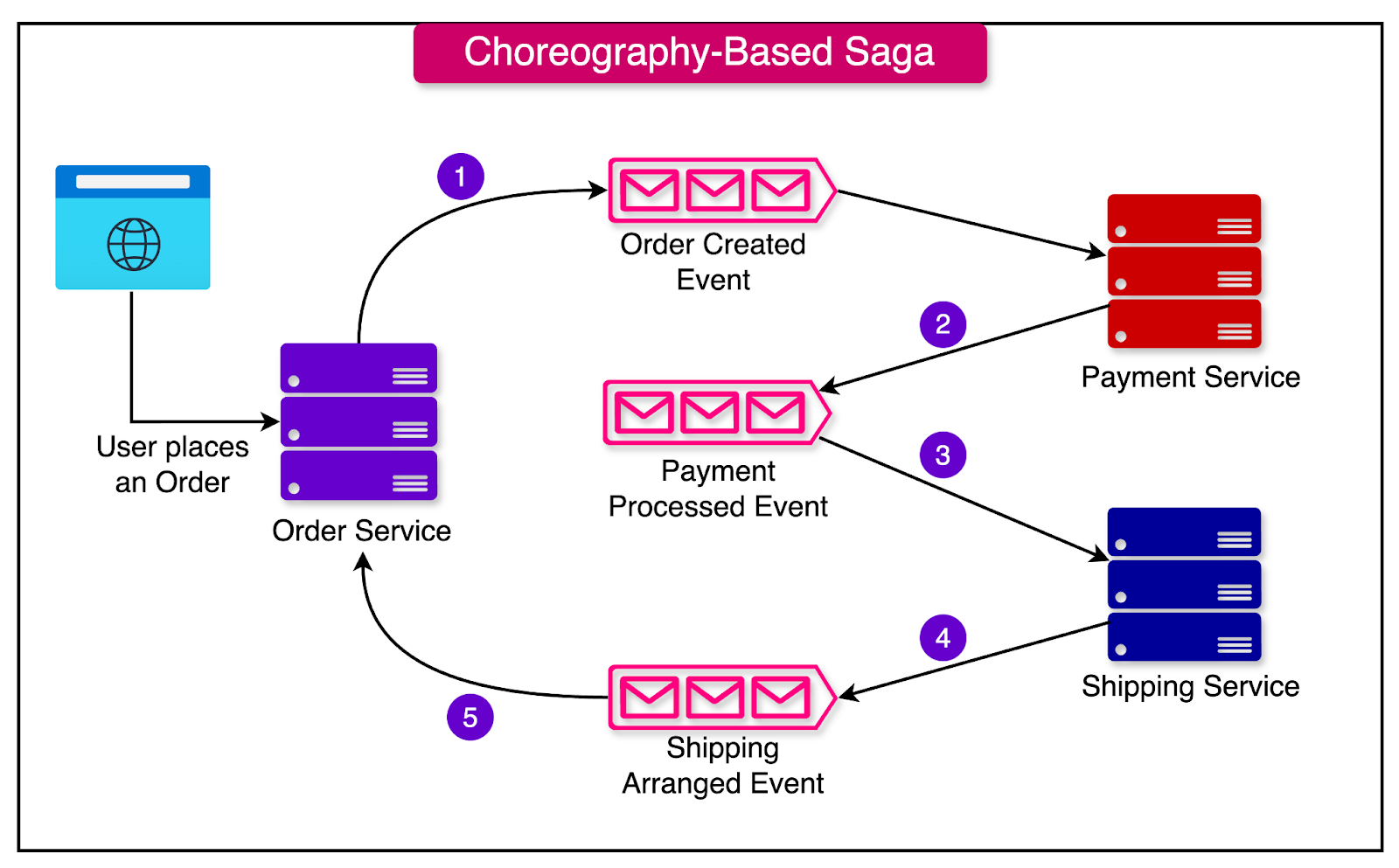

Let's visualize the "happy path" first.

Now, let's visualize how compensating transactions fit in.

To implement this, each service will need to:

1. Perform its own atomic, local database transaction.
2. Publish an event to a message broker (we'll use Kafka) to signal completion or failure.
3. Listen for events from other services to know when to act.

2. Implementing the Choreographed Saga: An E-commerce Example

We will now walk through a complete implementation of a choreographed saga for an e-commerce order flow. The system will consist of four services: OrderService, PaymentService, InventoryService, and ShippingService.

The following resource provides a full, end-to-end implementation using Spring Boot and Kafka. We will use it as our guide. I will not ask you to read the entire article at once, but rather refer you to specific sections as we build up the saga step-by-step.

As you've seen, each service is a standard Spring Boot application with dependencies for Web, JPA, and Kafka. The key Kafka properties in application.properties configure the connection to the broker and the serializers for sending/receiving events as JSON.

Now, let's implement each service's logic, starting with the one that kicks off the saga.

3. The Happy Path: Forward Transactions

Step 1: Order Service - Initiating the Saga

The OrderService starts the process. It receives a request to create an order, saves the order to its own database in a CREATED state, and then publishes an OrderCreatedEvent.

Step 2: Payment Service - Reacting to the First Event

The PaymentService is the next participant. It doesn't have a REST controller to start its process. Instead, it listens for the OrderCreatedEvent on the order-topic. When it receives the event, it processes the payment and publishes its own event, PaymentProcessedEvent, to the payment-processed-topic.

Step 3: Inventory and Shipping Services - Completing the Saga

The pattern continues:

• The Inventory Service listens for PaymentProcessedEvent, reserves stock, and publishes InventoryReservedEvent.
• The Shipping Service listens for InventoryReservedEvent and schedules the shipment, which is the final step in our happy path.

You can review their implementations following the same logic.

4. The Failure Path: Implementing Compensating Transactions

A saga is only robust if it can handle failures. In choreography, this is achieved by publishing failure events and having other services listen for them to execute their compensating logic.

Let's see this in action. The provided example simulates a failure in the InventoryService (e.g., item is out of stock). When this happens, it publishes an InventoryFailedEvent.

Now, the services that came before it must undo their work.

1. The Payment Service must refund the payment.
2. The Order Service must cancel the order.

How is this implemented? By adding another @KafkaListener in each of those services that subscribes to the inventory-failed-topic.

Let's look back at the code for the PaymentService and OrderService to see how they handle compensation.

• In PaymentService.java (from section 5 of the resource), you'll find the refundPayment method, annotated with @KafkaListener(topics = "inventory-failed-topic"). When it receives a message on this topic, it finds the payment and updates its status to REFUNDED.
• Similarly, in OrderService.java (from section 4), the handleInventoryFailed method listens to the same topic and updates the order's status to CANCELLED.

This is the choreography pattern in its entirety: services react not only to success events that move the saga forward, but also to failure events that move it backward, ensuring the system remains consistent.

5. Running and Testing the Saga

To see this system in action, you would:

1. Start a Kafka instance (and Zookeeper).
2. Create the required topics: order-topic, payment-processed-topic, inventory-reserved-topic, inventory-failed-topic, etc.
3. Run all four Spring Boot applications.
4. Send a POST request to the OrderService's /orders endpoint.

By observing the logs of each service and the status changes in their respective databases, you can trace the flow of events for both a successful transaction and a failed one. The resource LINK explains how to trigger both scenarios in its "Step 8: Running the System" section.

Conclusion

In this lesson, we translated our theoretical saga design into a working, event-driven system using Spring Boot and Kafka. This hands-on implementation is crucial for internalizing the pattern and discussing it confidently in an interview.

Key Takeaways:

• Choreography is decentralized: Services operate independently, reacting to events.
• Events drive the flow: Both forward progress (happy path) and rollbacks (compensation) are triggered by events.
• Implementation relies on:
  • A message broker like Kafka or RabbitMQ.
  • KafkaTemplate (or similar) to publish events.
  • @KafkaListener (or similar) to consume events.
• Compensation is just more event handling: A service that needs to compensate for a failure simply subscribes to the relevant failure event topic.

Next Up

While choreography offers great loose coupling, its decentralized nature can make it difficult to monitor and debug the end-to-end business process. Where did the transaction fail? Which services were involved? An alternative approach addresses these challenges.

In the next lesson, we will implement the exact same e-commerce saga, but this time using the orchestration pattern. You will create a central orchestrator service that explicitly commands each participant, providing a clear point of control and observability. This will give you a powerful comparison of the two main saga implementation strategies.
